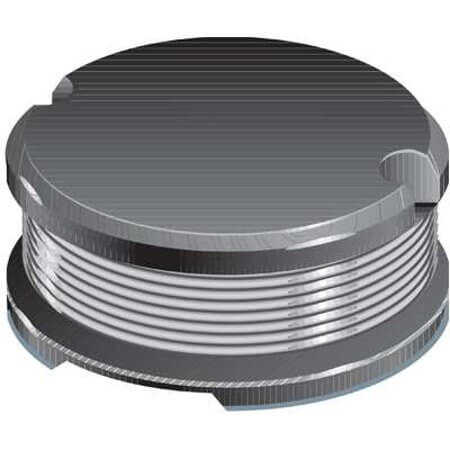

SDR1006-180ML INDUCTOR FIXED 18UH 2.15A 90 MOHM

SDR1006-180ML INDUCTOR FIXED 18UH 2.15A 90 MOHM Description

SDR1006-180ML INDUCTOR FIXED 18UH 2.15A 90 MOHM The SDR1006-180ML is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 18UH 2.15A 90 MOHM, this component ensures reliable and efficient power management. Manufactured by BOURNS, it features compact dimensions of 9.80mm x 9.80mm x 5.80mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the SDR1006-180ML reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

SDR1006-180ML INDUCTOR FIXED 18UH 2.15A 90 MOHM Technical Specifications

• Manufacturer: BOURNS
• Series: SDR
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• Inductance: 18uH
• CurrentRating: 2.15A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 90m Ohms
• Applications: General Purpose
• Diameter:
• Length: 9.80mm
• Width: 9.80mm
• Height: 5.80mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
