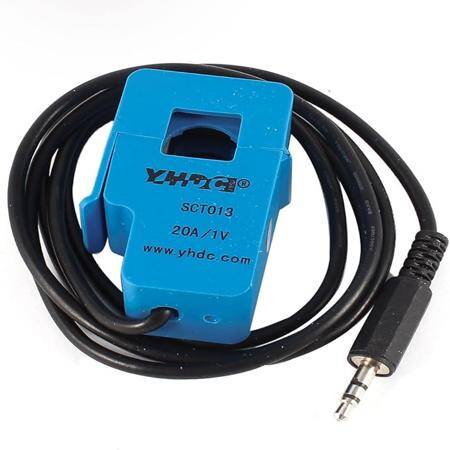

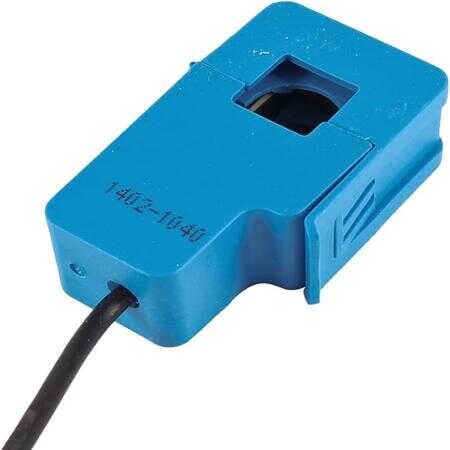

SCT-013-020 Non-invasive Split Core Current Transformer AC Current Sensor 20A

SCT-013-020 AC Current Sensor Description

The SCT-013-020 Non-invasive Split Core Current Transformer is a robust and reliable sensor designed for measuring AC currents up to 20A. Its non-invasive split-core design allows for easy installation without disrupting the electrical circuit, making it ideal for energy monitoring, power analysis, and automation systems. With high accuracy and durable construction, this sensor is perfect for residential, commercial, and industrial applications.

SCT-013-020 AC Current Sensor Features

• Non-invasive Design: Clamps around the conductor without cutting or modifying it.
• High Measurement Accuracy: Precisely measures AC currents up to 20A.
• Split Core Construction: Simplifies installation and reduces maintenance effort.
• Durable and Reliable: Built with high-quality materials for consistent long-term use.
• Compact and Lightweight: Easy to integrate into existing systems.
• Wide Compatibility: Compatible with microcontrollers, energy monitoring devices, and power management systems.

SCT-013-020 AC Current Sensor Specifications

• Model: SCT-013-020
• Current Range: 0-20A
• Output: Voltage signal (suitable for ADC input)
• Core Type: Split core
• Accuracy: ±1% under optimal conditions
• Cable Length: Approximately 1 meter
• Operating Temperature: -25°C to 70°C
• Dimensions: Compact and lightweight

SCT-013-020 AC Current Sensor Applications

• Energy Monitoring: Ideal for monitoring power consumption in medium-scale setups.
• Power Analysis: Provides accurate current readings for energy efficiency studies.
• Home Automation: Integrates into smart home systems for energy management.
• Industrial Systems: Used in monitoring machinery and electrical equipment in industrial environments.
• Educational Use: Great for teaching and experimenting with current sensing technologies.
