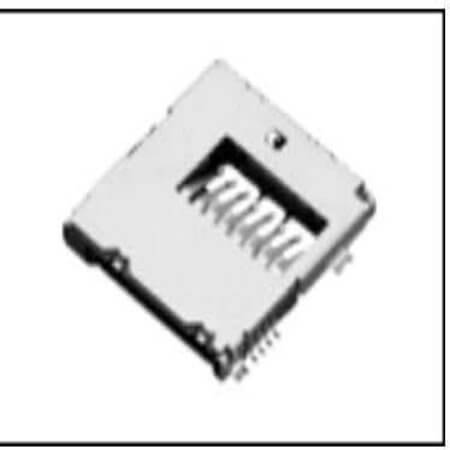

SCHA5B0200 CONNECTOR MICROSD CARD PUSH-PUSH TYPE ALPA

SCHA5B0200 CONNECTOR MICROSD CARD PUSH-PUSH TYPE ALPA Description

SCHA5B0200 CONNECTOR MICROSD CARD PUSH-PUSH TYPE ALPA The product SCHA5B0200 (CONNECTOR MICROSD CARD PUSH-PUSH TYPE ALPA) is a high-quality PC board socket designed for reliable connections. It features 14(8+6) Pins pins and a height above the board of 1.29mm. The socket has an ejector side on the N/A and an insertion/removal method of Push-Push. With contact plating of N/A and a housing color of Gray, it is built to ensure durability and performance. Operating within a temperature range of -20°C~+70°C, it is suitable for various applications. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an excellent choice for modern electronic systems.

SCHA5B0200 CONNECTOR MICROSD CARD PUSH-PUSH TYPE ALPA Technical Specifications

• Manufacturer: ALPS
• Series: SCHA
• CardType: Micro Sd Connectors
• MountingType: SMT
• NumberofPins: 14(8+6) Pins
• HeightAboveBoard: 1.29mm
• EjectorSide:
• Insertion,RemovalMethod: Push-Push
• MountingFeature: Standart Reverse
• ContactPlating:
• HousingColor: Gray
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
