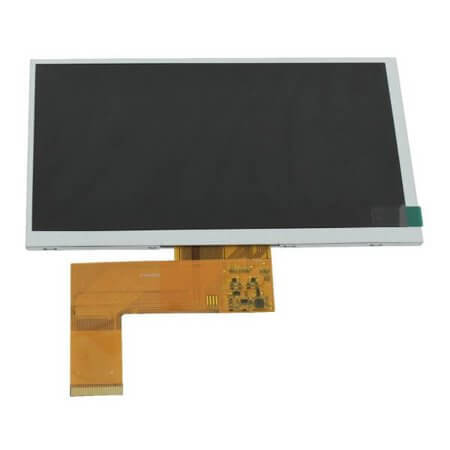

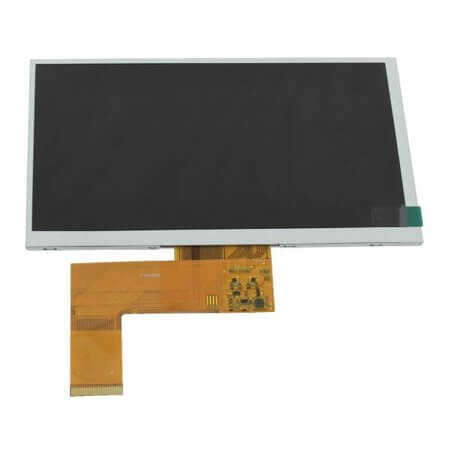

SAT070AT40D21Y0-35100T07 TFT PANEL 7” AT GLASS WIDE ANGLE 40P

SAT070AT40D21Y0-35100T07 TFT PANEL 7” AT GLASS WIDE ANGLE 40P Description

The SAT070AT40D21Y0-35100T07 TFT PANEL 7” AT GLASS WIDE ANGLE 40P The SAT070AT40D21Y0-35100T07 by SATOZ is an advanced TFT panel designed for high-resolution display applications. With a brightness of 280cd, this panel ensures clear and vibrant visuals even in bright environments. Equipped with a TTL RGB-24Bit Parallel interface, it supports seamless connectivity and efficient data transmission. The panel's compact design measures 165.00mm in length, 100.00mm in width, and 3.50mm in height, making it suitable for a variety of setups. Packaged in a BOX format, the SAT070AT40D21Y0-35100T07 offers both durability and ease of integration. Choose this premium TFT panel for reliable and precise display performance.

SAT070AT40D21Y0-35100T07 TFT PANEL 7” AT GLASS WIDE ANGLE 40P Technical Specifications

• Manufacturer: SATOZ
• Size: 7"
• Resolution: 800x480
• TouchFunction: Without Touch
• Bracket: Without Case
• PinType: 40 Pin
• ActiveArea: 154.08x85.92mm
• Brightness: 280cd
• Interface: TTL RGB-24Bit Parallel
• OutlineDiameter:
• OutlineLength: 165.00mm
• OutlineWidth: 100.00mm
• OutlineHeight: 3.50mm
• Packaging: BOX
