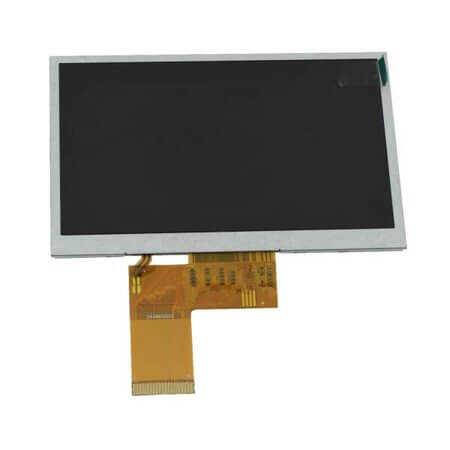

SAT050AT40D12B23076T51ZD TFT PANEL 5" AT GLASS LOW RES 40P

SAT050AT40D12B23076T51ZD TFT PANEL 5" AT GLASS LOW RES 40P Description

The SAT050AT40D12B23076T51ZD TFT PANEL 5" AT GLASS LOW RES 40P The SAT050AT40D12B23076T51ZD by SATOZ is an advanced TFT panel designed for high-resolution display applications. With a brightness of 350cd, this panel ensures clear and vibrant visuals even in bright environments. Equipped with a TTL RGB-24Bit Parallel interface, it supports seamless connectivity and efficient data transmission. The panel's compact design measures 120.70mm in length, 75.80mm in width, and 3.00mm in height, making it suitable for a variety of setups. Packaged in a BOX format, the SAT050AT40D12B23076T51ZD offers both durability and ease of integration. Choose this premium TFT panel for reliable and precise display performance.

SAT050AT40D12B23076T51ZD TFT PANEL 5" AT GLASS LOW RES 40P Technical Specifications

• Manufacturer: SATOZ
• Size: 5"
• Resolution: 480x272
• TouchFunction: Without Touch
• Bracket: Without Case
• PinType: 40 Pin
• ActiveArea: 110.88x62.83mm
• Brightness: 350cd
• Interface: TTL RGB-24Bit Parallel
• OutlineDiameter:
• OutlineLength: 120.70mm
• OutlineWidth: 75.80mm
• OutlineHeight: 3.00mm
• Packaging: BOX
