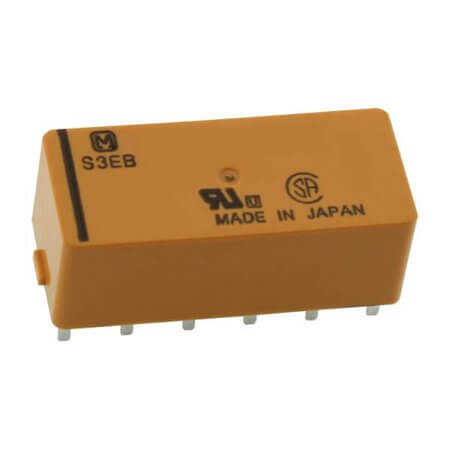

S3EB-3V RELAY 4A 3V 4PST (3 Form A,1 Form B)

S3EB-3V RELAY 4A 3V 4PST (3 Form A,1 Form B) Description

S3EB-3V RELAY 4A 3V 4PST (3 Form A,1 Form B) S3EB-3V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 45 Ohms. Features a coil power of 200mW and operates within a temperature range of -55°C~+65°C.Compact design with dimensions: length 28.00mm, width 12.00mm, and height 10.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

S3EB-3V RELAY 4A 3V 4PST (3 Form A,1 Form B) Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power Polarized
• Series: S
• MountingType: THT
• ContactForm: 4PST-NO/NC (3 Form A/1 Form B)
• CoilType: Non Latching
• ContactCurrent(Nom): 4A
• ContactCurrent(Max):
• CoilVoltage: 3VDC
• CoilCurrent: 66.70mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 45 Ohms
• CoilPower: 200mW
• OperatingTemperature: -55°C~+65°C
• NumberofPins: 12 Pin
• Length: 28.00mm
• Width: 12.00mm
• Height: 10.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
