S-5715ENSH1-M3T1U DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN HALL EFF

S-5715ENSH1-M3T1U DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN HALL EFF Description

S-5715ENSH1-M3T1U DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN HALL EFF The product S-5715ENSH1-M3T1U (DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN HALL EFF) is a high-performance magnetic sensor designed for accurate and reliable measurements. Leveraging Hall Effect technology, it features an output type of Open Drain and operates within a supply voltage range of 2.7V to 5.5V. With a supply current of 2mA and an output current of 2mA, this sensor ensures efficient and stable operation. It supports a sensing range of 4mT Trip, 1.1mT Release and functions effectively across an operating temperature range of -40°C~+85°C. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an excellent choice for modern electronic applications.

S-5715ENSH1-M3T1U DIGITAL SWITCH UNIPOLAR SWITCH OPEN DRAIN HALL EFF Technical Specifications

• Manufacturer: ABLIC
• Features: High-Speed / Middle-Speed Low Current Consumption Both Poles / Unipolar Detection Type Hall IC
• MountingType: SMT

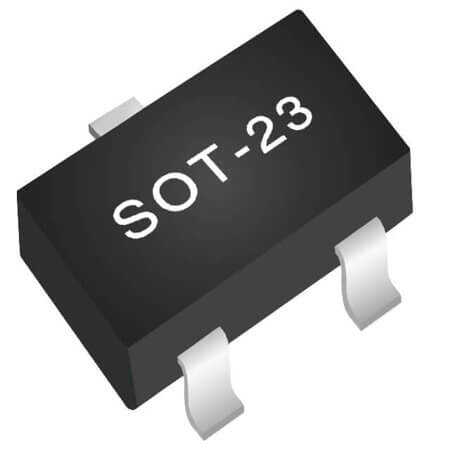

• Package/Case: SOT23
• Function: Unipolar Switch
• OutputTime(Rise/Fall):
• ManyeticFluxDensity:
• Polarization: South Pole
• Technology: Hall Effect
• OutputType: Open Drain
• SupplyVoltage: 2.7V to 5.5V
• SupplyCurrent: 2mA
• CurrentOutput: 2mA
• OutputVoltage:
• SensingRange: 4mT Trip, 1.1mT Release
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
