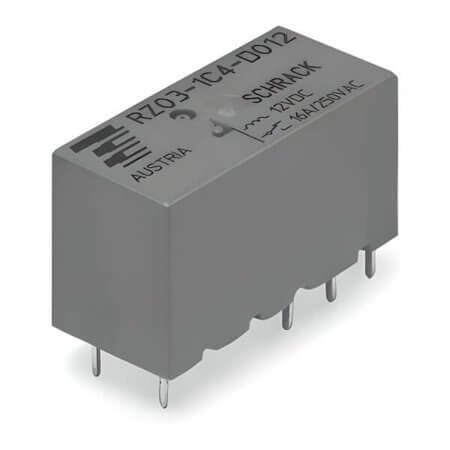

RZ03-1C4D012-R RELAY 16A 12V 1FORMC SCHRACK

RZ03-1C4D012-R RELAY 16A 12V 1FORMC SCHRACK Description

RZ03-1C4D012-R RELAY 16A 12V 1FORMC SCHRACK RZ03-1C4D012-R is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC and coil resistance of 360 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 15.70mm.Manufactured by TE (SCHRACK) and compliant with ROHS standards. Packaged as TUBE for convenience.

RZ03-1C4D012-R RELAY 16A 12V 1FORMC SCHRACK Technical Specifications

• Manufacturer: TE (SCHRACK)
• RelayType: Relay Power
• Series: RZ
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 16A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 250VAC
• CoilResistance: 360 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
