RTX-2520AF3F-S-10.000-TR CRYSTAL OSC. 10MHz 1.8V-3.3V 10pF 0.5PPM C.SINEWAV

RTX-2520AF3F-S-10.000-TR CRYSTAL OSC. 10MHz 1.8V-3.3V 10pF 0.5PPM C.SINEWAV Description

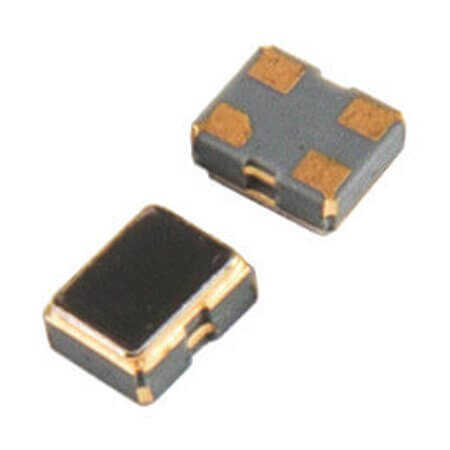

RTX-2520AF3F-S-10.000-TR CRYSTAL OSC. 10MHz 1.8V-3.3V 10pF 0.5PPM C.SINEWAV The product RTX-2520AF3F-S-10.000-TR (CRYSTAL OSC. 10MHz 1.8V~3.3V 10pF 0.5PPM C.SINEWAV) is a high-precision crystal oscillator designed for reliable frequency control. Manufactured by RALTRON, it offers a frequency stability of ±0.5PPM and operates at a supply voltage of 1.8V ~ 3.3V. The output type is Clipped Sinewave, making it versatile for various N/A applications. The compact design measures 2.50mm x 2.00mm x 0.70mm and performs reliably within a temperature range of -30°C~+85°C. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an ideal choice for modern electronic systems.

RTX-2520AF3F-S-10.000-TR CRYSTAL OSC. 10MHz 1.8V-3.3V 10pF 0.5PPM C.SINEWAV Technical Specifications

• Manufacturer: RALTRON
• MountingType: SMT
• Series: RTX-2520
• Package/Case: 4-SMD
• Frequency: 10MHz
• Capacitance: 10pF
• FrequencyTolerance:
• FrequencyStability: ±0.5PPM
• SupplyVoltage: 1.8V ~ 3.3V
• Output: Clipped Sinewave
• Applications:
• Length: 2.50mm
• Width: 2.00mm
• Height: 0.70mm
• OperatingTemperature: -30°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
