RN112-4-02-0M7 CHOKE COMMON MODE 700uH 4A SMD THROUGH HOLE

RN112-4-02-0M7 CHOKE COMMON MODE 700uH 4A SMD THROUGH HOLE Description

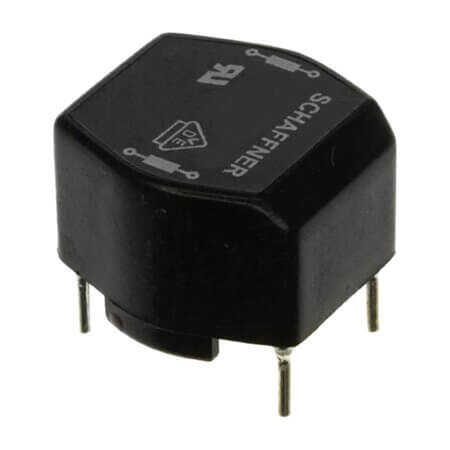

RN112-4-02-0M7 CHOKE COMMON MODE 700uH 4A SMD THROUGH HOLE The product RN112-4-02-0M7 (CHOKE COMMON MODE 700uH 4A SMD THROUGH HOLE) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by SCHAFFNER, it features an inductance of 700uH and a DC resistance of 24m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 17.70mm x 17.10mm x 12.90mm and operates within a temperature range of -40°C ~ +100°C. Packaged in TRAY format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

RN112-4-02-0M7 CHOKE COMMON MODE 700uH 4A SMD THROUGH HOLE Technical Specifications

• Manufacturer: SCHAFFNER
• Series: RN112
• MountingType: THT
• Package/Case: Non Standard
• Pitch:
• Technology: Wire Wound
• Shielding: Unshielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: 700uH
• Impedance: None
• Current: 4A
• Tolerance:
• DCResistance(DCR): 24m Ohms
• Applications: General Purpose
• Diameter:
• Length: 17.70mm
• Width: 17.10mm
• Height: 12.90mm
• OperationTemperature: -40°C ~ +100°C
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
