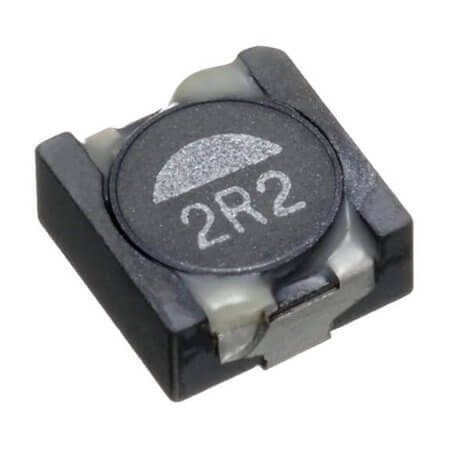

RLF7030T-2R2M5R4 FIXED IND 2.2UH 5.4A 10 MOHM SMD

RLF7030T-2R2M5R4 FIXED IND 2.2UH 5.4A 10 MOHM SMD Description

RLF7030T-2R2M5R4 FIXED IND 2.2UH 5.4A 10 MOHM SMD The RLF7030T-2R2M5R4 is an advanced fixed inductor tailored for high-performance applications. With its FIXED IND 2.2UH 5.4A 10 MOHM SMD, this component ensures reliable and efficient power management. Manufactured by TDK, it features compact dimensions of 7.30mm x 6.80mm x 3.20mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the RLF7030T-2R2M5R4 reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

RLF7030T-2R2M5R4 FIXED IND 2.2UH 5.4A 10 MOHM SMD Technical Specifications

• Manufacturer: TDK
• Series: RLF
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• Inductance: 2.2uH
• CurrentRating: 5.4A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 10m Ohms
• Applications: General Purpose
• Diameter:
• Length: 7.30mm
• Width: 6.80mm
• Height: 3.20mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
