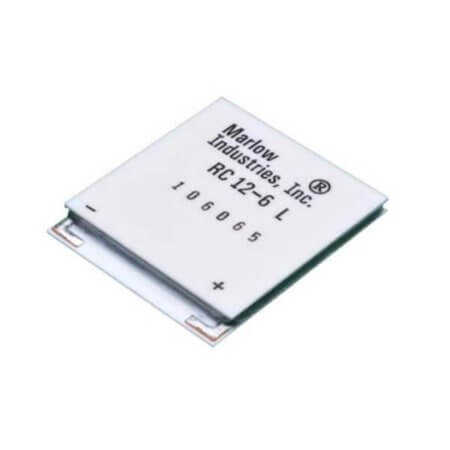

RC12-6-01LS MODULE THERMOELECTRIC 5.6A 44.70X40.13MM

RC12-6-01LS MODULE THERMOELECTRIC 5.6A 44.70X40.13MM Description

RC12-6-01LS MODULE THERMOELECTRIC 5.6A 44.70X40.13MM RC12-6-01LS is a high-performance Peltier module offering a maximum voltage of 14.70V and a maximum current of 5.60A. With a cooling capacity (Qmax) of 54W @27°C and a temperature differential (ΔTmax) of 66°C @27°C, this module is suitable for efficient thermal management. The compact dimensions of 44.70mm x 40.13mm x 4.01mm and Wire Leads termination ensure versatile integration. Compliant with ROHS standards, it is packaged in TRAY for secure storage and handling.

RC12-6-01LS MODULE THERMOELECTRIC 5.6A 44.70X40.13MM Technical Specifications

• Manufacturer: MARLOW
• Series: RC12-6
• Qmax: 54W @27°C
• DeltaTmax: 66°C @27°C
• Current(Max): 5.60A
• Voltage(Max): 14.70V
• TerminationStyle: Wire Leads
• Length: 44.70mm
• Width: 40.13mm
• Height: 4.01mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
