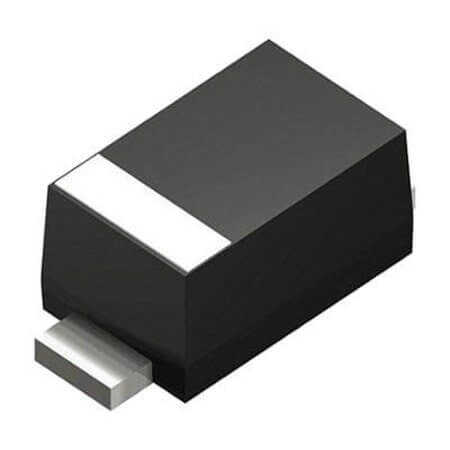

PTVS5V0S1UR,115 DIODE TVS 400W 5V SOD123W

PTVS5V0S1UR,115 DIODE TVS 400W 5V SOD123W Description

The PTVS5V0S1UR,115 DIODE TVS 400W 5V SOD123W The PTVS5V0S1UR,115 by NXP is a state-of-the-art TVS diode designed to protect electronic circuits from voltage transients. With a reverse current of 5uA, it ensures minimal leakage while maintaining optimal performance. Featuring a peak pulse current of 43.5A and a power peak pulse of 400W, this diode is ideal for Automotive(AEC-Q101) applications. Operating efficiently within a temperature range of -55°C~+150°C, the PTVS5V0S1UR,115 is built to endure demanding environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this diode offers exceptional reliability and protection for sensitive electronic systems.

PTVS5V0S1UR,115 DIODE TVS 400W 5V SOD123W Technical Specifications

• Manufacturer: NXP
• TVS  DiodeType: Standard
• DiodeConfiguration: Single
• MountingType: SMT
• Package  /Case: SOD123W
• Direction: Uni-Direction
• Voltage  -  Reverse  Standoff(Typ): 5V
• ReverseCurrent: 5uA
• Peak  Pulse  Current  (Max)(Ippm): 43.5A
• Power  (PeakPulse): 400W
• Applications: Automotive(AEC-Q101)
• OperatingTemperature: -55°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL
