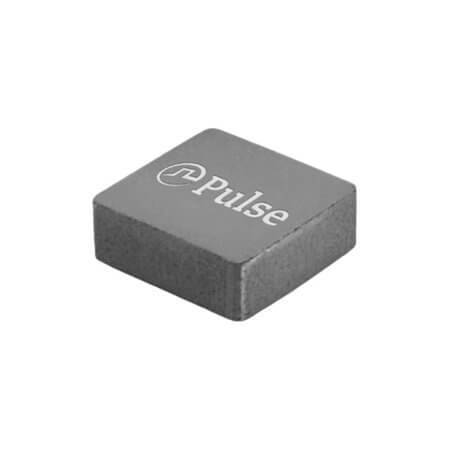

PM2204.182NLT FIXED INDUCTOR 1.8UH 14A 10.2MOHM SMD

PM2204.182NLT FIXED INDUCTOR 1.8UH 14A 10.2MOHM SMD Description

PM2204.182NLT FIXED INDUCTOR 1.8UH 14A 10.2MOHM SMD The PM2204.182NLT is an advanced fixed inductor tailored for high-performance applications. With its FIXED INDUCTOR 1.8UH 14A 10.2MOHM SMD, this component ensures reliable and efficient power management. Manufactured by PULSE, it features compact dimensions of 6.60mm x 6.40mm x 2.80mm, making it ideal for space-constrained designs. Its ability to operate within -55°C ~ +155°C demonstrates its durability and versatility. Compliant with ROHS standards, the PM2204.182NLT reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

PM2204.182NLT FIXED INDUCTOR 1.8UH 14A 10.2MOHM SMD Technical Specifications

• Manufacturer: PULSE
• Series: PM
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Unshielded
• Inductance: 1.8uH
• CurrentRating: 14A
• Current-Saturation(Isat): 13A
• Tolerance: ±20%
• DCResistance(DCR): 9.2m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 6.60mm
• Width: 6.40mm
• Height: 2.80mm
• OperationTemperature: -55°C ~ +155°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
