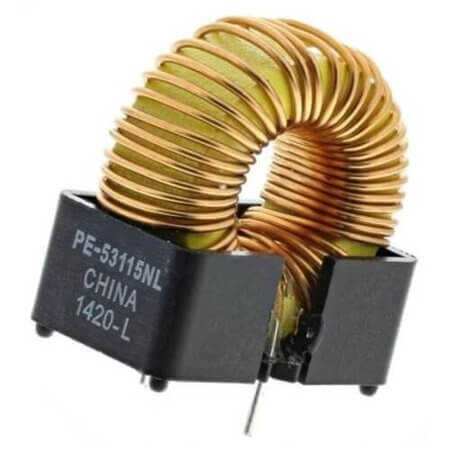

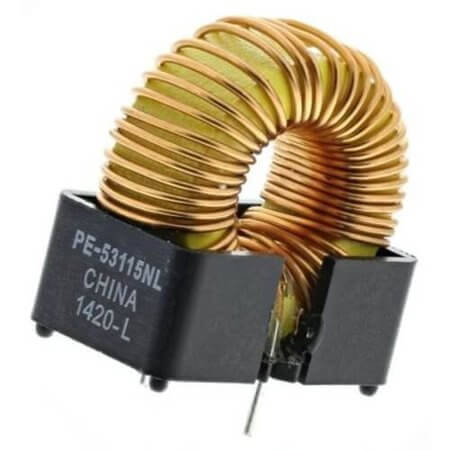

PE-53115NL INDUCTOR FIXED 150uH 3A THT

PE-53115NL INDUCTOR FIXED 150uH 3A THT Description

PE-53115NL INDUCTOR FIXED 150uH 3A THT The PE-53115NL is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 150uH 3A THT, this component ensures reliable and efficient power management. Manufactured by PULSE, it features compact dimensions of 24.64mm x 15.50mm x 27.94mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +130°C demonstrates its durability and versatility. Compliant with environmentally compliant standards, the PE-53115NL reflects a commitment to eco-friendly practices. Packaged as TUBE, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

PE-53115NL INDUCTOR FIXED 150uH 3A THT Technical Specifications

• Manufacturer: PULSE
• Series: PE
• MountingType: THT
• Package/Case: Non Standard
• Pitch: 22.86mm
• Technology: Wire Wound
• Shielding: Unshielded
• Inductance: 150uH
• CurrentRating: 3A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 100m Ohms
• Applications: General Purpose
• Diameter:
• Length: 24.64mm
• Width: 15.50mm
• Height: 27.94mm
• OperationTemperature: -40°C ~ +130°C
• Rohs:
• Packaging: TUBE

---

You can click for product datasheet.
