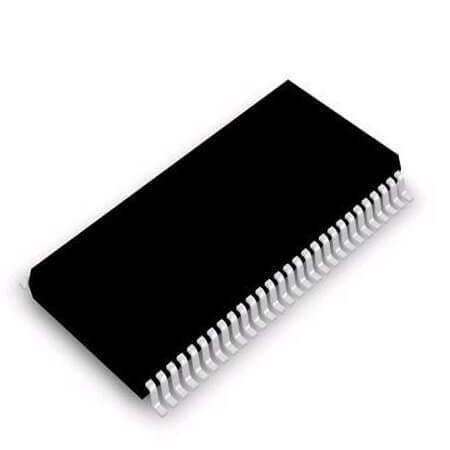

PCA9698DGG INTERFACE - I/O EXPANDERS I2C I/O EXPANDER GP

PCA9698DGG INTERFACE - I/O EXPANDERS I2C I/O EXPANDER GP Description

PCA9698DGG INTERFACE - I/O EXPANDERS I2C I/O EXPANDER GP PCA9698DGG is a versatile and high-performance I/O expander that supports a supply voltage range of 2.3V to 5.5V with Open Drain output type. Designed for efficient operation within a frequency of 1MHz and temperature range of -40°C~85°C. Compact package type: N/A, mounting style: SMT.Manufactured with compliance to ROHS standards for reliable performance. Packaged as TAPE&REEL for convenience.

PCA9698DGG INTERFACE - I/O EXPANDERS I2C I/O EXPANDER GP Technical Specifications

• Manufacturer: NXP
• Interface: I2C
• Features: 40-Bit Fm+ I2C-Bus advanced I/O Port with RESET, OE and INT
• MountingType: SMT
• OperatingFrequency: 1MHz
• OperatingTemperature: -40°C~85°C
• OutputType: Open Drain
• Package/Case: TSSOP56
• Packaging: TAPE&REEL
• Rohs: ROHS
• SupplyVoltage: 2.3V to 5.5V
• OutputCurrent(Sink/Source): 10mA, 25mA
• OutputCurrent: -

---

You can click for product datasheet.
