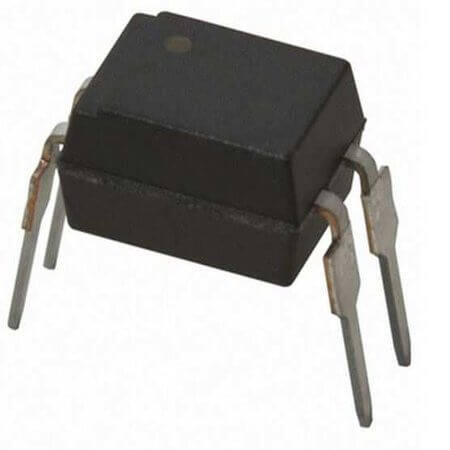

PC814-4NS IC-814 OPTOISOLATOR 5KV TRANS 4DIP SHARP

PC814-4NS IC-814 OPTOISOLATOR 5KV TRANS 4DIP SHARP Description

The PC814-4NS IC-814 OPTOISOLATOR 5KV TRANS 4DIP SHARP The PC814-4NS by SHARP is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 35V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 5000Vrms and a forward voltage of 1.2V, making it suitable for demanding applications. Operating in a temperature range of -30°C~+110°C, the PC814-4NS is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TUBE format, this optocoupler is the ideal choice for advanced electronic designs.

PC814-4NS IC-814 OPTOISOLATOR 5KV TRANS 4DIP SHARP Technical Specifications

• Features: AC Input Photocoupler
• Manufacturer: SHARP
• MountingType: THT
• Package   /Case: DIP4
• Number   ofChannel: 1
• Current   TransferRatio: %20 - %300
• OutputVoltage: 35V
• OutputCurrent: 50mA
• IsolationVoltage: 5000Vrms
• ForwardVoltage: 1.2V
• OperatingTemperature: -30°C~+110°C
• Rohs: ROHS
• Packaging: TUBE
