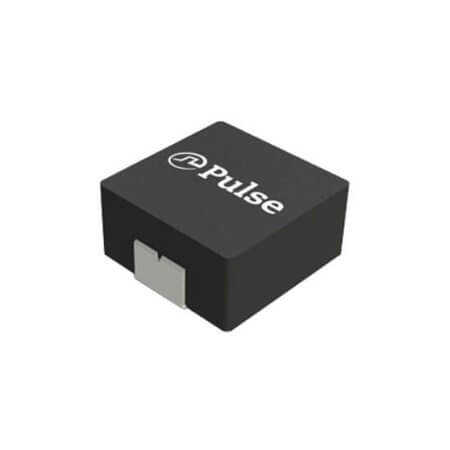

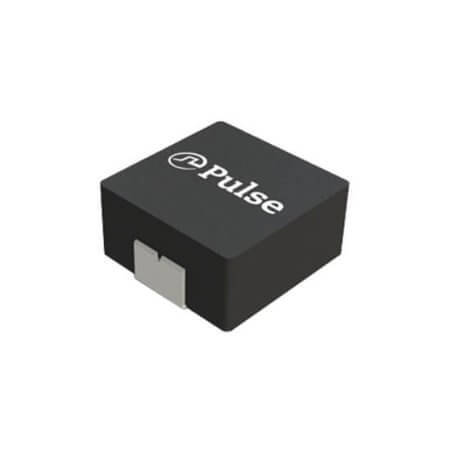

PA4344.104NLT INDUCTOR FIXED 100UH 5.3A 118MOHM SMD

PA4344.104NLT INDUCTOR FIXED 100UH 5.3A 118MOHM SMD Description

PA4344.104NLT INDUCTOR FIXED 100UH 5.3A 118MOHM SMD The PA4344.104NLT is an advanced fixed inductor tailored for high-performance applications. With its INDUCTOR FIXED 100UH 5.3A 118MOHM SMD, this component ensures reliable and efficient power management. Manufactured by PULSE, it features compact dimensions of 17.70mm x 17.20mm x 7.00mm, making it ideal for space-constrained designs. Its ability to operate within -40°C ~ +125°C demonstrates its durability and versatility. Compliant with ROHS standards, the PA4344.104NLT reflects a commitment to eco-friendly practices. Packaged as TAPE&REEL, it is the perfect choice for engineers seeking precision, performance, and reliability in their circuits.

PA4344.104NLT INDUCTOR FIXED 100UH 5.3A 118MOHM SMD Technical Specifications

• Manufacturer: PULSE
• Series: PA4344
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Power
• Shielding: Shielded
• Inductance: 100uH
• CurrentRating: 5.3A
• Current-Saturation(Isat):
• Tolerance: ±20%
• DCResistance(DCR): 102m Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 17.70mm
• Width: 17.20mm
• Height: 7.00mm
• OperationTemperature: -40°C ~ +125°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
