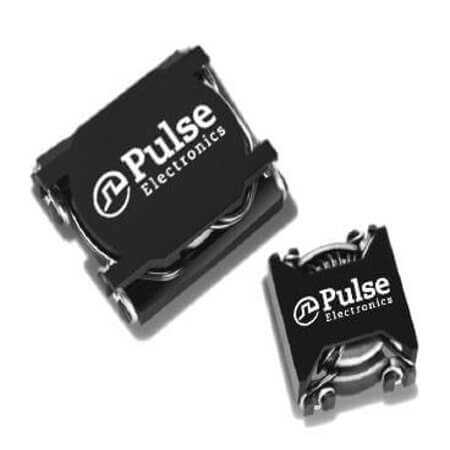

P0502NL COMMON MODE CHOKE 470uH 14A 2LN SMD

P0502NL COMMON MODE CHOKE 470uH 14A 2LN SMD Description

P0502NL COMMON MODE CHOKE 470uH 14A 2LN SMD The product P0502NL (COMMON MODE CHOKE 470uH 14A 2LN SMD) is a high-quality common mode choke designed for efficient noise suppression. Manufactured by PULSE, it features an inductance of 470uH and a DC resistance of 8m Ohms. Built for General Purpose, it is suitable for various applications. The compact design measures 30.99mm x 25.40mm x 12.70mm and operates within a temperature range of -40°C ~ +120°C. Packaged in TUBE format, this choke complies with ROHS standards, making it a reliable choice for modern systems.

P0502NL COMMON MODE CHOKE 470uH 14A 2LN SMD Technical Specifications

• Manufacturer: PULSE
• Series: PO
• MountingType: SMT
• Package/Case: Non Standard
• Pitch: None
• Technology: Wire Wound
• Shielding: Shielded
• FilterType: Power Line Filter
• NumberofLines: 2
• Inductance: 470uH
• Impedance: None
• Current: 14A
• Tolerance: ±35%
• DCResistance(DCR): 8m Ohms
• Applications: General Purpose
• Diameter:
• Length: 30.99mm
• Width: 25.40mm
• Height: 12.70mm
• OperationTemperature: -40°C ~ +120°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
