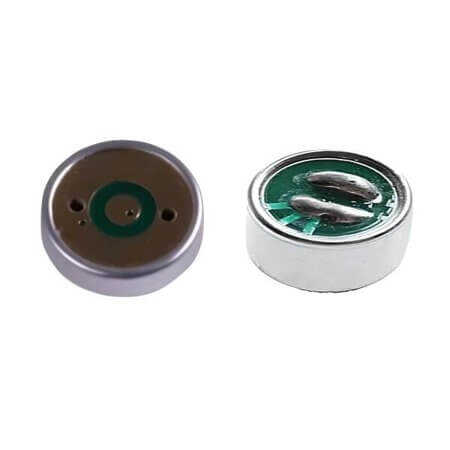

OM4015CF373BS-HD MICROPHONE 0.5MA 50hz 2V

OM4015CF373BS-HD MICROPHONE 0.5MA 50hz 2V Description

OM4015CF373BS-HD MICROPHONE 0.5MA 50hz 2V The product OM4015CF373BS-HD (MICROPHONE 0.5MA 50hz 2V) is a high-performance microphone designed for clear and accurate sound capture. With a frequency range of 20Hz-16kHz and a sensitivity of -37dB ±3dB, it delivers exceptional audio quality. Operating with a current supply of 0.50mA and featuring a SMT mounting type, this microphone is versatile and easy to integrate. Its compact design includes a diameter of 4.00mm and a height of 1.50mm, making it suitable for various applications. Compliant with ROHS standards, it is packaged in TRAY, ensuring durability and convenience. An ideal choice for modern audio systems.

OM4015CF373BS-HD MICROPHONE 0.5MA 50hz 2V Technical Specifications

• Manufacturer: SOUND COMP.
• Series: OM
• Impedance: 2.2K Ohms
• VoltageRated: 1-10V
• FrequencyRange: 20Hz-16kHz
• Sensitivity: -37dB ±3dB
• Current-Supply: 0.50mA
• MountingType: SMT
• Diameter: 4.00mm
• Length:
• Width:
• Height: 1.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
