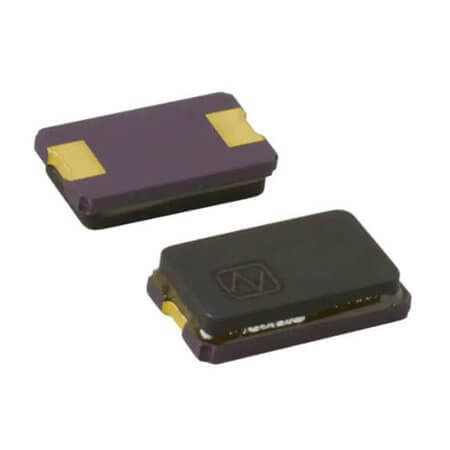

NX5032GB-16MHZ-STD-CSK-5 CRYSTAL 16.0000MHZ 8PF SMD

NX5032GB-16MHZ-STD-CSK-5 CRYSTAL 16.0000MHZ 8PF SMD Description

NX5032GB-16MHZ-STD-CSK-5 CRYSTAL 16.0000MHZ 8PF SMD NX5032GB-16MHZ-STD-CSK-5 is a high-performance crystal component that operates at a frequency of 16MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 50 Ohms. Compact dimensions: length 5.00mm, width 3.20mm, and height 1.50mm. Supports a temperature range of -10°C~+70°C for reliable performance. Manufactured by NDK with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

NX5032GB-16MHZ-STD-CSK-5 CRYSTAL 16.0000MHZ 8PF SMD Technical Specifications

• Manufacturer: NDK
• MountingType: SMT
• Series: NX5032GB
• Package/Case: 2-SMD
• Frequency: 16MHz
• Capacitance: 8pF
• FrequencyTolerance: ±20PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 50 Ohms
• Applications:
• Diameter:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.50mm
• OperatingTemperature: -10°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
