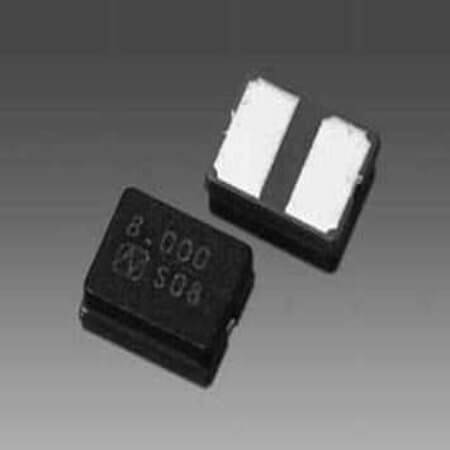

NX3225GD-8MHZ-STD-CRA-3 CRYSTAL 8MHZ 8PF SMD NDK

NX3225GD-8MHZ-STD-CRA-3 CRYSTAL 8MHZ 8PF SMD NDK Description

NX3225GD-8MHZ-STD-CRA-3 CRYSTAL 8MHZ 8PF SMD NDK NX3225GD-8MHZ-STD-CRA-3 is a high-performance crystal component that operates at a frequency of 8MHz with a frequency stability of ±150PPM.Features equivalent series resistance (ESR) of 500 Ohms. Compact dimensions: length 3.20mm, width 2.50mm, and height 1.00mm. Supports a temperature range of -40°C~+150°C for reliable performance. Manufactured by NDK with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

NX3225GD-8MHZ-STD-CRA-3 CRYSTAL 8MHZ 8PF SMD NDK Technical Specifications

• Manufacturer: NDK
• MountingType: SMT
• Series: NX3225GD
• Package/Case: 2-SMD
• Frequency: 8MHz
• Capacitance: 8pF
• FrequencyTolerance: ±50PPM
• FrequencyStability: ±150PPM
• EquivalentSeriesResistance(ESR): 500 Ohms
• Applications: Automotive(AEC-Q200)
• Diameter:
• Length: 3.20mm
• Width: 2.50mm
• Height: 1.00mm
• OperatingTemperature: -40°C~+150°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
