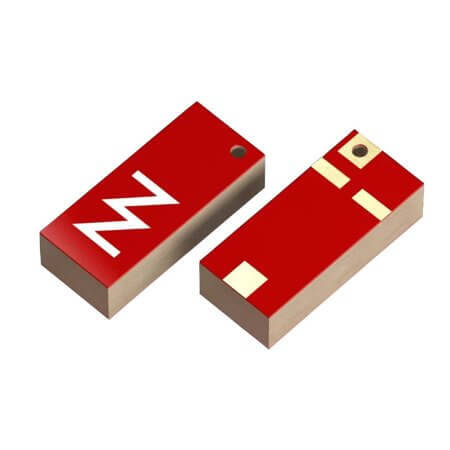

NN03-320 RF ANT 1561 – 5875 MHz CHIP SOLDER SMD

NN03-320 RF ANT 1561 – 5875 MHz CHIP SOLDER SMD Description

NN03-320 RF ANT 1561 – 5875 MHz CHIP SOLDER SMD The product NN03-320 (RF ANT 1561 – 5875 MHz CHIP SOLDER SMD) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a CHIP type design with an impedance of 50 Ohm, it supports a wide frequency range of 1.56GHz to 10.6GHz. The antenna offers a gain of 2.6dBi and a VSWR of 2.5, ensuring efficient performance. Suitable for 5G, Beidou, BT, Galileo, GNSS, GPS, UWB, it has a compact height of 2mm and operates within a temperature range of N/A. Compliant with N/A standards, it is packaged in TAPE&REEL format, making it ideal for modern communication systems.

NN03-320 RF ANT 1561 – 5875 MHz CHIP SOLDER SMD Technical Specifications

• Manufacturer: IGNION
• Gender: SMT
• AntennaType: CHIP
• Impedance: 50 Ohm
• FrequencyRange: 1.56GHz to 10.6GHz
• Gain: 2.6dBi
• VSWR: 2.5
• Applications: 5G, Beidou, BT, Galileo, GNSS, GPS, UWB
• Height: 2mm
• OperatingTemperature:
• Rohs:
• Packaging: TAPE&REEL

---

You can click for product datasheet.
