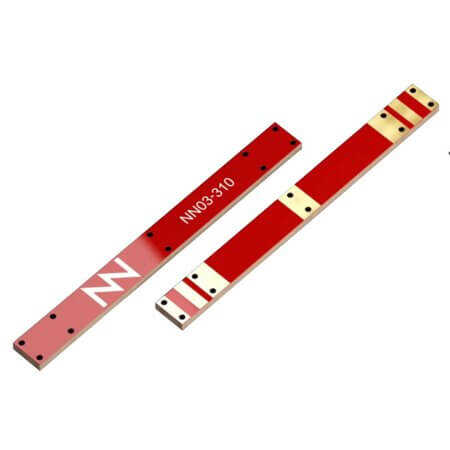

NN03-310 RF ANT 698 – 3800 MHz CHIP SOLDER SMD

NN03-310 RF ANT 698 – 3800 MHz CHIP SOLDER SMD Description

NN03-310 RF ANT 698 – 3800 MHz CHIP SOLDER SMD The product NN03-310 (RF ANT 698 – 3800 MHz CHIP SOLDER SMD) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a CHIP type design with an impedance of 50 Ohm, it supports a wide frequency range of 698MHz to 3.8GHz. The antenna offers a gain of 2.4dBi and a VSWR of 3, ensuring efficient performance. Suitable for 2G, 3G, 4G, 5G, NB-IoT, LTE-M, GNSS, Bluetooth, Wi-Fi 6E, UWB, it has a compact height of 1mm and operates within a temperature range of N/A. Compliant with N/A standards, it is packaged in TAPE&REEL format, making it ideal for modern communication systems.

NN03-310 RF ANT 698 – 3800 MHz CHIP SOLDER SMD Technical Specifications

• Manufacturer: IGNION
• Gender: SMT
• AntennaType: CHIP
• Impedance: 50 Ohm
• FrequencyRange: 698MHz to 3.8GHz
• Gain: 2.4dBi
• VSWR: 3
• Applications: 2G, 3G, 4G, 5G, NB-IoT, LTE-M, GNSS, Bluetooth, Wi-Fi 6E, UWB
• Height: 1mm
• OperatingTemperature:
• Rohs:
• Packaging: TAPE&REEL

---

You can click for product datasheet.
