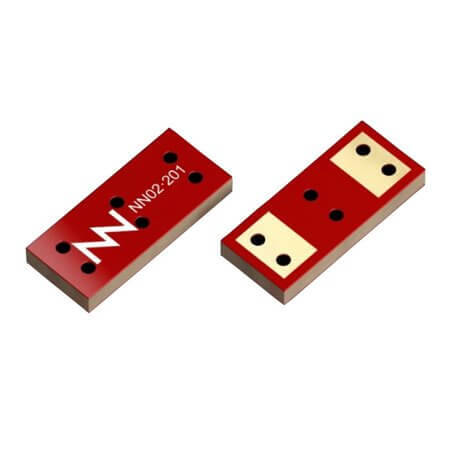

NN02-201 RF ANT 824 – 7125 MHz CHIP SOLDER SMD

NN02-201 RF ANT 824 – 7125 MHz CHIP SOLDER SMD Description

NN02-201 RF ANT 824 – 7125 MHz CHIP SOLDER SMD The product NN02-201 (RF ANT 824 – 7125 MHz CHIP SOLDER SMD) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a CHIP type design with an impedance of 50 Ohm, it supports a wide frequency range of 824MHz to 7.125GHz. The antenna offers a gain of 4.1dBi and a VSWR of 3, ensuring efficient performance. Suitable for 2G, 3G, 4G, 5G, DCS, GSM, LTE, PCS, UMTS, Wifi DB, it has a compact height of 1mm and operates within a temperature range of N/A. Compliant with N/A standards, it is packaged in TAPE&REEL format, making it ideal for modern communication systems.

NN02-201 RF ANT 824 – 7125 MHz CHIP SOLDER SMD Technical Specifications

• Manufacturer: IGNION
• Gender: SMT
• AntennaType: CHIP
• Impedance: 50 Ohm
• FrequencyRange: 824MHz to 7.125GHz
• Gain: 4.1dBi
• VSWR: 3
• Applications: 2G, 3G, 4G, 5G, DCS, GSM, LTE, PCS, UMTS, Wifi DB
• Height: 1mm
• OperatingTemperature:
• Rohs:
• Packaging: TAPE&REEL

---

You can click for product datasheet.
