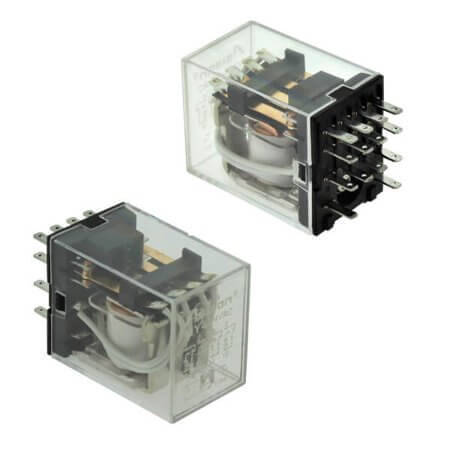

MY4-24VAC-DRAGON RELAY 5A 24VAC 4PNC (HC4) DRAGON

MY4-24VAC-DRAGON RELAY 5A 24VAC 4PNC (HC4) DRAGON Description

MY4-24VAC-DRAGON RELAY 5A 24VAC 4PNC (HC4) DRAGON MY4-24VAC-DRAGON is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 168 Ohms. Features a coil power of 1.20VA and operates within a temperature range of nan.Compact design with dimensions: length 27.50mm, width 21.00mm, and height 36.50mm.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as TRAY for convenience.

MY4-24VAC-DRAGON RELAY 5A 24VAC 4PNC (HC4) DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Power
• Series: MY4
• MountingType: Socket
• ContactForm: 4PDT (4 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max): 5A
• CoilVoltage: 24VAC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 168 Ohms
• CoilPower: 1.20VA
• OperatingTemperature:
• NumberofPins: 14 Pin
• Length: 27.50mm
• Width: 21.00mm
• Height: 36.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
