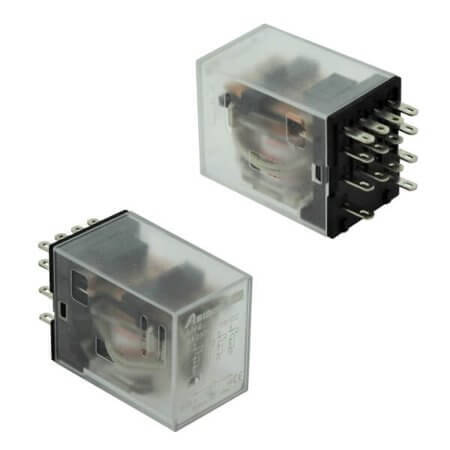

MY4-220VAC-DRAGON RELAY 5A 220VAC 4PNC (HC4) DRAGON

MY4-220VAC-DRAGON RELAY 5A 220VAC 4PNC (HC4) DRAGON Description

MY4-220VAC-DRAGON RELAY 5A 220VAC 4PNC (HC4) DRAGON MY4-220VAC-DRAGON is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 1.40K Ohms. Features a coil power of 900mW and operates within a temperature range of nan.Compact design with dimensions: length nan, width nan, and height nan.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as TRAY for convenience.

MY4-220VAC-DRAGON RELAY 5A 220VAC 4PNC (HC4) DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Power
• Series: MY4
• MountingType: Socket
• ContactForm: 4PDT (4 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max): 5A
• CoilVoltage: 220VAC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 1.40K Ohms
• CoilPower: 900mW
• OperatingTemperature:
• NumberofPins: 14 Pin
• Length:
• Width:
• Height:
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
