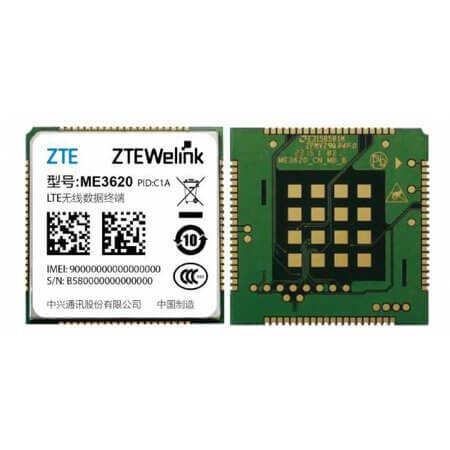

ME3620-C1A-MK-03 MODULE FDD-LTE/TDD-LTE ( B1/B3/B7/B8 )/UMTS/GSM HS

ME3620-C1A-MK-03 MODULE FDD-LTE/TDD-LTE ( B1/B3/B7/B8 )/UMTS/GSM HS Description

ME3620-C1A-MK-03 MODULE FDD-LTE/TDD-LTE ( B1/B3/B7/B8 )/UMTS/GSM HS The product ME3620-C1A-MK-03 (MODULE FDD-LTE/TDD-LTE ( B1/B3/B7/B8 )/UMTS/GSM HS) is a cutting-edge module combining robust features for advanced communication systems. Designed as a N/A, it supports supply voltage ranging from 3.4V to 4.2V and offers data rates of 50mbps (UL) / 100mbps (DL). Its frequency compatibility includes 1.4/3/5/10/15/20MHz, ensuring wide network adaptability. Manufactured by ZTEWELINK, this SMT mounting type module is housed in a N/A package, offering compactness and ease of integration. Operating within a temperature range of -30°C~+75°C, it is well-suited for demanding environments. Compliant with RoHS standards and available in TRAY packaging, it is an ideal choice for modern GSM and GNSS applications.

ME3620-C1A-MK-03 MODULE FDD-LTE/TDD-LTE ( B1/B3/B7/B8 )/UMTS/GSM HS Technical Specifications

• Manufacturer: ZTEWELINK
• ModuleType: LTE 4G Module
• MountingType: SMT
• Package/Case: LCC (30 x 30 x 2.3)
• SupplyVoltage: 3.4V to 4.2V
• DataRate: 50mbps (UL) / 100mbps (DL)
• Frequency: 1.4/3/5/10/15/20MHz
• OperatingTemperature: -30°C~+75°C
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
