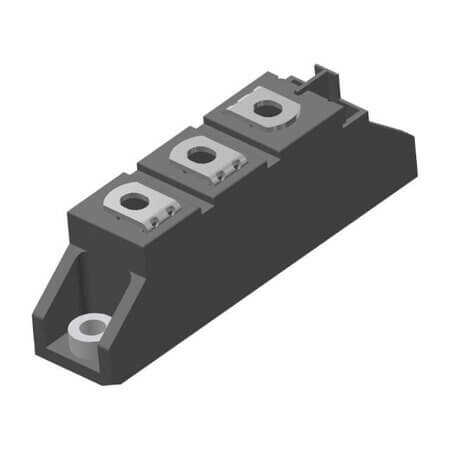

MCNA40PD2200TB THYRISTOR DIODE MOD.DUAL 40A 2200V TO240AA CHASSIS

MCNA40PD2200TB THYRISTOR DIODE MOD.DUAL 40A 2200V TO240AA CHASSIS Description

MCNA40PD2200TB THYRISTOR DIODE MOD.DUAL 40A 2200V TO240AA CHASSIS The MCNA40PD2200TB, manufactured by IXYS, is a high-performance module designed for thyristor diode mod.dual 40a 2200v to240aa chassis. It offers exceptional reliability and efficiency in high-power applications. The module features a forward voltage drop of 1.27V, ensuring minimal power loss. It can handle a power dissipation of 160W, making it suitable for demanding environments. The reverse recovery time is N/A, and the turn-off time is 500us, allowing for efficient switching. Configured as a dual module, it provides versatility for various applications. The device operates within a temperature range of -40°C~+125°C, ensuring robust performance in diverse conditions. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in box format, it ensures secure handling and storage. With its advanced features and durable design, the MCNA40PD2200TB is an excellent choice for professionals seeking reliable module diode and thyristor solutions.

MCNA40PD2200TB THYRISTOR DIODE MOD.DUAL 40A 2200V TO240AA CHASSIS Technical Specifications

• Manufacturer: IXYS
• Series: Thyristor Phase Control
• MountingType: Chassis
• Package/Case: TO240AA
• CurrentOnState(ITav): 40A (2x40A)
• RMSOnState(ITrms): 63A (2x63A)
• CurrentTemperature(IC): 85°C
• CurrentHold(IH): 100mA
• Voltage(VRRM): 2.2kV
• GateTrigger(Vgt): 1.4V
• ForwardDrop(VT): 1.27V
• PowerDissipation: 160W
• Trr:
• Tq: 500us
• Configuration: Dual
• Applications:
• JunctionTemperature(Tj):
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
