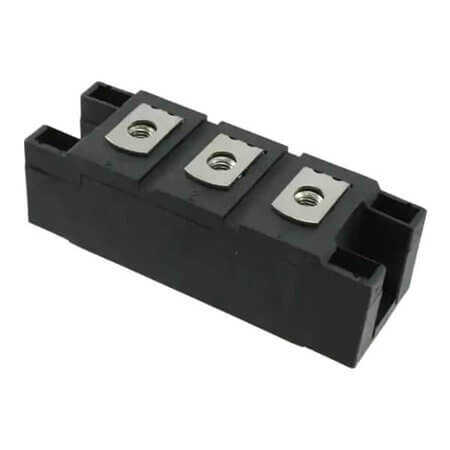

MCNA150PD2200YB THYRISTOR DIODE MOD.DUAL 150A 2200V Y4-M6 CHASSIS

MCNA150PD2200YB THYRISTOR DIODE MOD.DUAL 150A 2200V Y4-M6 CHASSIS Description

MCNA150PD2200YB THYRISTOR DIODE MOD.DUAL 150A 2200V Y4-M6 CHASSIS The MCNA150PD2200YB, manufactured by IXYS, is a high-performance module designed for thyristor diode mod.dual 150a 2200v y4-m6 chassis. It offers exceptional reliability and efficiency in high-power applications. The module features a forward voltage drop of 1.24V, ensuring minimal power loss. It can handle a power dissipation of 550W, making it suitable for demanding environments. The reverse recovery time is N/A, and the turn-off time is 200us, allowing for efficient switching. Configured as a dual module, it provides versatility for various applications. The device operates within a temperature range of -40°C~+125°C, ensuring robust performance in diverse conditions. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in box format, it ensures secure handling and storage. With its advanced features and durable design, the MCNA150PD2200YB is an excellent choice for professionals seeking reliable module diode and thyristor solutions.

MCNA150PD2200YB THYRISTOR DIODE MOD.DUAL 150A 2200V Y4-M6 CHASSIS Technical Specifications

• Manufacturer: IXYS
• Series: Thyristor Phase Control
• MountingType: Chassis
• Package/Case: Y4-M6
• CurrentOnState(ITav): 150A (2x150A)
• RMSOnState(ITrms): 235A (2x235A)
• CurrentTemperature(IC): 85°C
• CurrentHold(IH): 200mA
• Voltage(VRRM): 2.2kV
• GateTrigger(Vgt): 2V
• ForwardDrop(VT): 1.24V
• PowerDissipation: 550W
• Trr:
• Tq: 200us
• Configuration: Dual
• Applications:
• JunctionTemperature(Tj):
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
