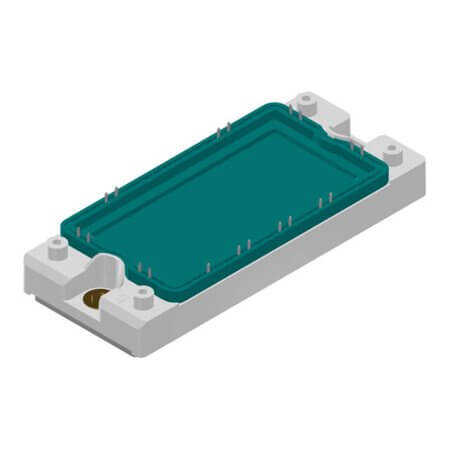

MCNA120UI2200PED THYRISTOR DIODE MOD.THREE PH 120A 2200V E2-PACK

MCNA120UI2200PED THYRISTOR DIODE MOD.THREE PH 120A 2200V E2-PACK Description

MCNA120UI2200PED THYRISTOR DIODE MOD.THREE PH 120A 2200V E2-PACK The MCNA120UI2200PED, manufactured by IXYS, is a high-performance module designed for thyristor diode mod.three ph 120a 2200v e2-pack. It offers exceptional reliability and efficiency in high-power applications. The module features a forward voltage drop of 1.33V, ensuring minimal power loss. It can handle a power dissipation of 190W, making it suitable for demanding environments. The reverse recovery time is 1.3us, and the turn-off time is 500us, allowing for efficient switching. Configured as a three ph module, it provides versatility for various applications. The device operates within a temperature range of -40°C~+125°C, ensuring robust performance in diverse conditions. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in blister format, it ensures secure handling and storage. With its advanced features and durable design, the MCNA120UI2200PED is an excellent choice for professionals seeking reliable module diode and thyristor solutions.

MCNA120UI2200PED THYRISTOR DIODE MOD.THREE PH 120A 2200V E2-PACK Technical Specifications

• Manufacturer: IXYS
• Series: Half Controlled Single Phase Rectifier Bridge
• MountingType: Chassis
• Package/Case: E2-Pack
• CurrentOnState(ITav): 120A
• RMSOnState(ITrms):
• CurrentTemperature(IC): 80°C
• CurrentHold(IH): 100mA
• Voltage(VRRM): 2.2kV
• GateTrigger(Vgt): 1.4V
• ForwardDrop(VT): 1.33V
• PowerDissipation: 190W
• Trr: 1.3us
• Tq: 500us
• Configuration: Three PH
• Applications:
• JunctionTemperature(Tj):
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: BLISTER

---

You can click for product datasheet.
