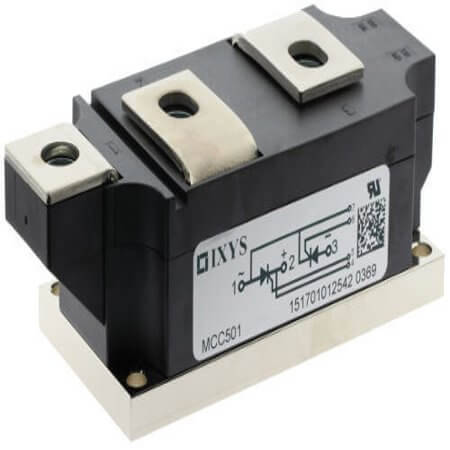

MCC501-14IO2 THYRISTOR MOD.DUAL 503A 1400V WC-501 CHASSIS

MCC501-14IO2 THYRISTOR MOD.DUAL 503A 1400V WC-501 CHASSIS Description

MCC501-14IO2 THYRISTOR MOD.DUAL 503A 1400V WC-501 CHASSIS The product MCC501-14IO2 (THYRISTOR MOD.DUAL 503A 1400V WC-501 CHASSIS) is a high-quality thyristor module designed for robust performance and reliability. Manufactured by IXYS, it features a forward voltage drop of 1.5V and a power dissipation capacity of N/A. The module offers a recovery time of 19us and a turn-off time of 200us, making it suitable for various industrial applications. With a Dual configuration, it operates within a temperature range of -40°C~+125°C and complies with ROHS standards. Packaged in BOX format, it is an ideal choice for efficient power control.

MCC501-14IO2 THYRISTOR MOD.DUAL 503A 1400V WC-501 CHASSIS Technical Specifications

• Manufacturer: IXYS
• Series: Thyristor Phase Control
• MountingType: Chassis
• Package/Case: WC-501
• CurrentOnState(ITav): 503A (2x503A)
• RMSOnState(ITrms): 1.195kA (2x1.195kA)
• CurrentTemperature(IC): 85°C
• CurrentHold(IH): 300mA
• Voltage(VRRM): 1.4kV
• GateTrigger(Vgt): 2.5V
• ForwardDrop(VT): 1.5V
• PowerDissipation:
• Trr: 19us
• Tq: 200us
• Configuration: Dual
• Applications:
• JunctionTemperature(Tj):
• OperatingTemperature: -40°C~+125°C
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
