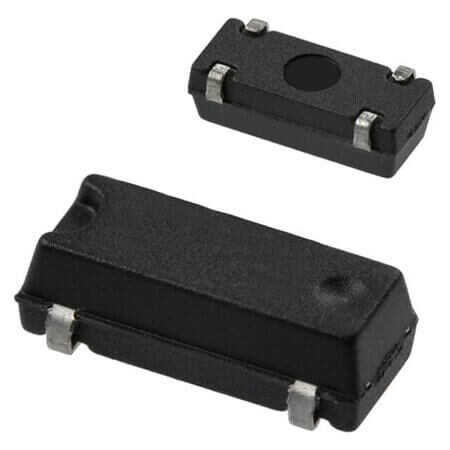

MA-306 25.0000M-C0:ROHS CRYSTAL 25.0000MHZ 18PF 50PPM SMD

MA-306 25.0000M-C0:ROHS CRYSTAL 25.0000MHZ 18PF 50PPM SMD Description

MA-306 25.0000M-C0:ROHS CRYSTAL 25.0000MHZ 18PF 50PPM SMD MA-306 25.0000M-C0:ROHS is a high-performance crystal component that operates at a frequency of 25MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 60 Ohms. Compact dimensions: length 8.00mm, width 3.80mm, and height 2.54mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by EPSON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

MA-306 25.0000M-C0:ROHS CRYSTAL 25.0000MHZ 18PF 50PPM SMD Technical Specifications

• Manufacturer: EPSON
• MountingType: SMT
• Series: MC-306
• Package/Case: 4-SOJ
• Frequency: 25MHz
• Capacitance: 18pF
• FrequencyTolerance: ±50PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 60 Ohms
• Applications:
• Diameter:
• Length: 8.00mm
• Width: 3.80mm
• Height: 2.54mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
