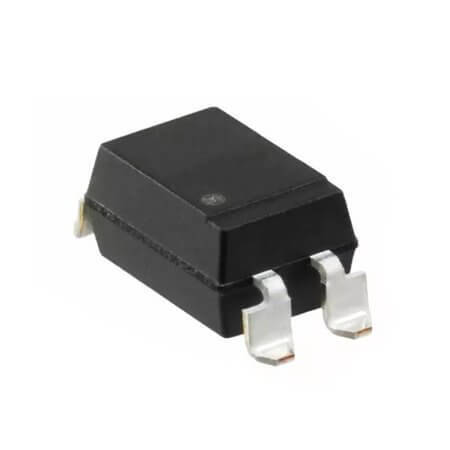

LTV816S2TPC-V-G IC-816 OPTO OPTOCOUPLERS - PHOTOTRANSİSTOR OUTPUT

LTV816S2TPC-V-G IC-816 OPTO OPTOCOUPLERS - PHOTOTRANSİSTOR OUTPUT Description

The LTV816S2TPC-V-G IC-816 OPTO OPTOCOUPLERS - PHOTOTRANSİSTOR OUTPUT The LTV816S2TPC-V-G by LITEON is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 80V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 5000Vrms and a forward voltage of 1.2V, making it suitable for demanding applications. Operating in a temperature range of -50°C~+110°C, the LTV816S2TPC-V-G is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

LTV816S2TPC-V-G IC-816 OPTO OPTOCOUPLERS - PHOTOTRANSİSTOR OUTPUT Technical Specifications

• Features:
• Manufacturer: LITEON
• MountingType: SMT
• Package  /Case: SMD4
• Number  ofChannel: 1
• Current  TransferRatio: %200 - %400
• OutputVoltage: 80V
• OutputCurrent: 50mA
• IsolationVoltage: 5000Vrms
• ForwardVoltage: 1.2V
• OperatingTemperature: -50°C~+110°C
• Rohs: ROHS
• Packaging: TAPE&REEL
