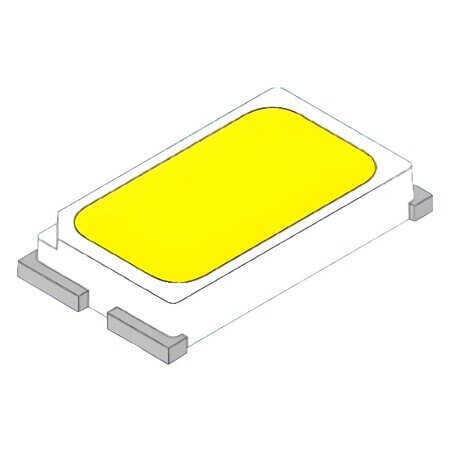

LMLTP5621C4K1Z060-C80 LED SMD 5630 NW 4100K 21.8-27.8LM@60mA

LMLTP5621C4K1Z060-C80 LED SMD 5630 NW 4100K 21.8-27.8LM@60mA Description

LMLTP5621C4K1Z060-C80 LED SMD 5630 NW 4100K 21.8-27.8LM@60mA The LMLTP5621C4K1Z060-C80 is a high-quality product offering LED SMD 5630 NW 4100K 21.8-27.8LM@60mA. With a shrink ratio of N/A and -30°C~+85°C operating temperature, it provides reliability in various applications.

LMLTP5621C4K1Z060-C80 LED SMD 5630 NW 4100K 21.8-27.8LM@60mA Technical Specifications

• Manufacturer: LUMIMICRO
• Color: Neutral White
• MountingType: SMT
• Package/Case: 5630
• MountingStyle: Top View
• MaxPower: 500mW
• CCT: 4100K
• Luminous Flux(25°C): 21.80-27.80lm
• Luminous Flux(85°C):
• Luminous Intensity(25°C):
• ForwardVoltage: 2.80-3.20V @ 25°C
• Forward Current: 150mA
• TestCurrent: 60mA
• CRI: 80
• ViewAngle: 120°
• ThermalResistance: 30°C/W
• Diameter:
• Length: 5.60mm
• Width: 3.00mm
• Height: 0.90mm
• OperatingTemperature: -30°C~+85°C
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
