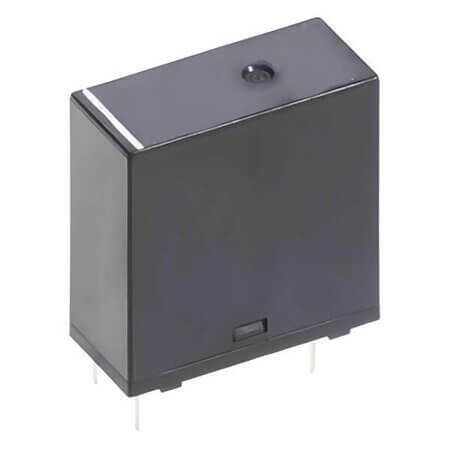

LKP1AF-24V RELAY 10A 24VDC 1P NAIS

LKP1AF-24V RELAY 10A 24VDC 1P NAIS Description

LKP1AF-24V RELAY 10A 24VDC 1P NAIS LKP1AF-24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC and coil resistance of 1.09K Ohms. Features a coil power of 530mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 24.00mm, width 11.00mm, and height 25.00mm.Manufactured by PANASONIC (NAIS) and compliant with ROHS standards. Packaged as TRAY for convenience.

LKP1AF-24V RELAY 10A 24VDC 1P NAIS Technical Specifications

• Manufacturer: PANASONIC (NAIS)
• RelayType: Relay Power
• Series: LKP
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 22.10mA
• ContactVoltage: 277VAC/30VDC
• CoilResistance: 1.09K Ohms
• CoilPower: 530mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 24.00mm
• Width: 11.00mm
• Height: 25.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
