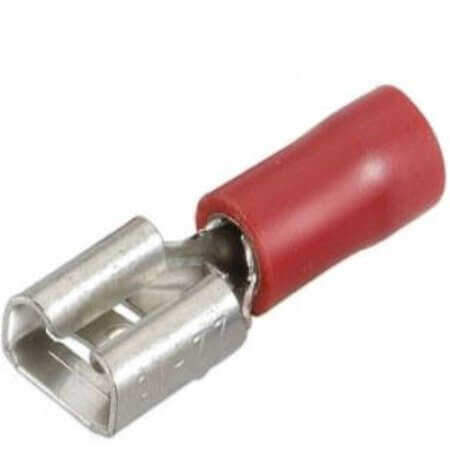

L-KLS8-01106-FDD1.251878 QUICK TERMINAL 5.6x19 RED NEMA TAB 0.8X4.75mm

L-KLS8-01106-FDD1.251878 QUICK TERMINAL 5.6x19 RED NEMA TAB 0.8X4.75mm Description

L-KLS8-01106-FDD1.251878 QUICK TERMINAL 5.6x19 RED NEMA TAB 0.8X4.75mm The L-KLS8-01106-FDD1.251878 is an advanced quick disconnect connector crafted for efficient and secure connections. Featuring QUICK TERMINAL 5.6x19 RED NEMA TAB 0.8X4.75mm, this connector ensures optimal performance in various electrical systems. Manufactured by KLS ELECTRONIC, it supports 22-16 AWG (0.5-1.5 mm²) wire sizes, providing flexibility for diverse applications. The End Insulated and Brass construction enhance durability and reliability. With its Red design, it is easy to identify and use. Compliant with ROHS standards, the L-KLS8-01106-FDD1.251878 reflects a commitment to environmental safety. Packaged as BAG, this quick disconnect connector is an excellent choice for professionals seeking versatility and efficiency in their projects.

L-KLS8-01106-FDD1.251878 QUICK TERMINAL 5.6x19 RED NEMA TAB 0.8X4.75mm Technical Specifications

• Manufacturer: KLS ELECTRONIC
• Series: KLS8-01106
• MountingType: Free
• Gender: Female
• Pitch: None
• TabWidth: 5.60mm
• LengthOverall: 19.00mm
• WireGauge(AWG): 22-16 AWG
• WireGauge(mm²): 0.5-1.5 mm²
• Insulation: End Insulated
• ContactMaterial: Brass
• Color: Red
• Rohs: ROHS
• Packaging: BAG

---

You can click for product datasheet.
