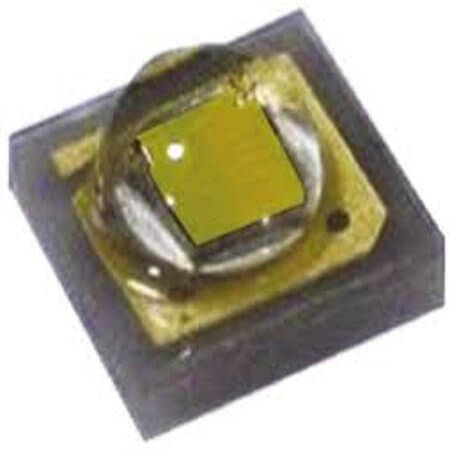

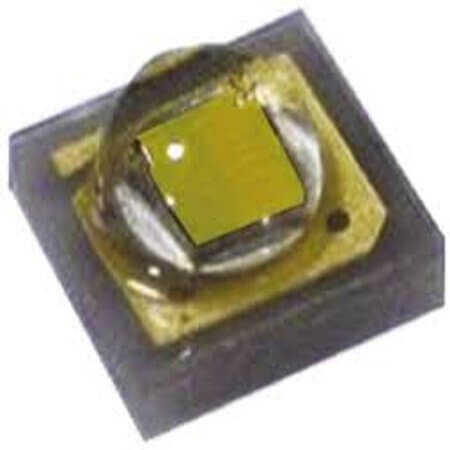

LCW CQ7P.PC LP-7I-5-350 LED POWER CW 5000K OSLON SSL80 112-121LM@350mA

LCW CQ7P.PC LP-7I-5-350 LED POWER CW 5000K OSLON SSL80 112-121LM@350mA Description

LCW CQ7P.PC LP-7I-5-350 LED POWER CW 5000K OSLON SSL80 112-121LM@350mA The LCW CQ7P.PC LP-7I-5-350 is a high-quality product offering LED POWER CW 5000K OSLON SSL80 112-121LM@350mA. With a shrink ratio of N/A and nan operating temperature, it provides reliability in various applications.

LCW CQ7P.PC LP-7I-5-350 LED POWER CW 5000K OSLON SSL80 112-121LM@350mA Technical Specifications

• Manufacturer: OSRAM
• Color: Cool White
• MountingType: SMT
• Package/Case: 3030
• MountingStyle: Top View
• MaxPower: 2.60W
• CCT: 5000K
• Luminous Flux(25°C):
• Luminous Flux(85°C): 112-121lm
• Luminous Intensity(25°C):
• ForwardVoltage: 3.25-3.50V @ 85°C
• Forward Current: 800mA
• TestCurrent: 350mA
• CRI: 70
• ViewAngle: 80°
• ThermalResistance: 5.8°C/W
• Diameter:
• Length: 3.10mm
• Width: 3.10mm
• Height: 1.58mm
• OperatingTemperature:
• Rohs: ROHS
• TAPE&REEL: TAPE&REEL
• ShrinkRatio:

---

You can click for product datasheet.
