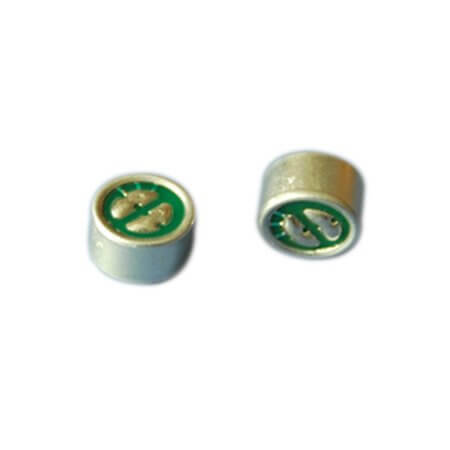

L-KLS3-MM9767P-443 MICROPHONE 6.7X9.7MM 44DB 2.2K OHM 4.5V UNPIN

L-KLS3-MM9767P-443 MICROPHONE 6.7X9.7MM 44DB 2.2K OHM 4.5V UNPIN Description

L-KLS3-MM9767P-443 MICROPHONE 6.7X9.7MM 44DB 2.2K OHM 4.5V UNPIN The product L-KLS3-MM9767P-443 (MICROPHONE 6.7X9.7MM 44DB 2.2K OHM 4.5V UNPIN) is a high-performance microphone designed for clear and accurate sound capture. With a frequency range of 20Hz-16kHz and a sensitivity of -44dB ±3dB, it delivers exceptional audio quality. Operating with a current supply of 0.50mA and featuring a SMT mounting type, this microphone is versatile and easy to integrate. Its compact design includes a diameter of 9.70mm and a height of 6.70mm, making it suitable for various applications. Compliant with ROHS standards, it is packaged in BOX, ensuring durability and convenience. An ideal choice for modern audio systems.

L-KLS3-MM9767P-443 MICROPHONE 6.7X9.7MM 44DB 2.2K OHM 4.5V UNPIN Technical Specifications

• Manufacturer: KLS ELECTRONIC
• Series: MM
• Impedance: 2.2K Ohms
• VoltageRated: 1-10V
• FrequencyRange: 20Hz-16kHz
• Sensitivity: -44dB ±3dB
• Current-Supply: 0.50mA
• MountingType: SMT
• Diameter: 9.70mm
• Length:
• Width:
• Height: 6.70mm
• Rohs: ROHS
• Packaging: BOX

---

You can click for product datasheet.
