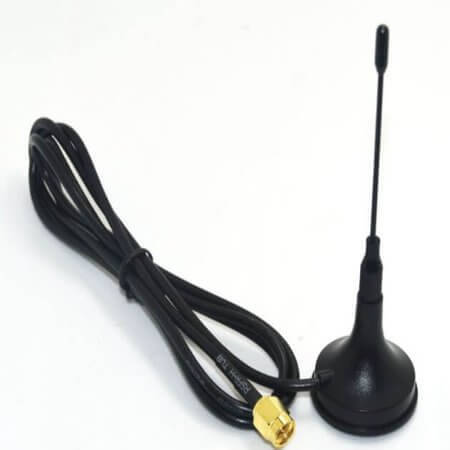

L-KLS1-GSM15-010-100-300 MAGNET ANTENNA GSM SMA 50R 3000MM

L-KLS1-GSM15-010-100-300 MAGNET ANTENNA GSM SMA 50R 3000MM Description

L-KLS1-GSM15-010-100-300 MAGNET ANTENNA GSM SMA 50R 3000MM The product L-KLS1-GSM15-010-100-300 (MAGNET ANTENNA GSM SMA 50R 3000MM) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a WHIP/STRAIGHT type design with an impedance of 50 Ohm, it supports a wide frequency range of 890MHz to 960MHz, 1710MHz 1880MHz. The antenna offers a gain of 2dBi and a VSWR of 2.0, ensuring efficient performance. Suitable for GSM/CDMA/3G/LTE ANTENNA, it has a compact height of 100mm and operates within a temperature range of -30°C~+70°C. Compliant with ROHS standards, it is packaged in BULK format, making it ideal for modern communication systems.

L-KLS1-GSM15-010-100-300 MAGNET ANTENNA GSM SMA 50R 3000MM Technical Specifications

• Manufacturer: KLS ELECTRONIC
• Gender: SMA MALE
• AntennaType: WHIP/STRAIGHT
• Impedance: 50 Ohm
• FrequencyRange: 890MHz to 960MHz, 1710MHz 1880MHz
• Gain: 2dBi
• VSWR: 2.0
• Applications: GSM/CDMA/3G/LTE ANTENNA
• Height: 100mm
• OperatingTemperature: -30°C~+70°C
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
