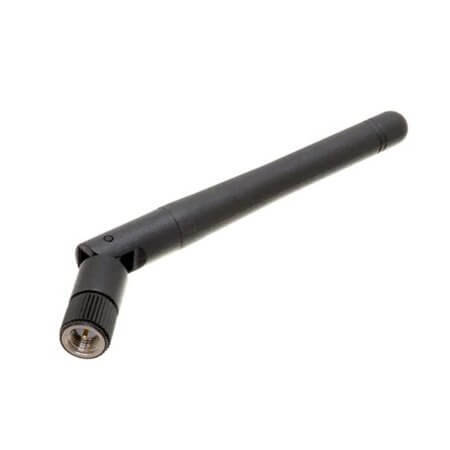

L-KLS1-GSM-04-MS-108 ANTENNA GSM FOR SMA L=108MM BLACK

L-KLS1-GSM-04-MS-108 ANTENNA GSM FOR SMA L=108MM BLACK Description

L-KLS1-GSM-04-MS-108 ANTENNA GSM FOR SMA L=108MM BLACK The product L-KLS1-GSM-04-MS-108 (ANTENNA GSM FOR SMA L=108MM BLACK) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a WHIP/TILT type design with an impedance of 50 Ohm, it supports a wide frequency range of 800MHz to 2200MHz. The antenna offers a gain of 2.15-3dBi and a VSWR of 2.0:1, ensuring efficient performance. Suitable for GSM/CDMA/3G/LTE ANTENNA, it has a compact height of 108mm and operates within a temperature range of -40°C~+80°C. Compliant with ROHS standards, it is packaged in BAG format, making it ideal for modern communication systems.

L-KLS1-GSM-04-MS-108 ANTENNA GSM FOR SMA L=108MM BLACK Technical Specifications

• Manufacturer: KLS ELECTRONIC
• Gender: SMA MALE
• AntennaType: WHIP/TILT
• Impedance: 50 Ohm
• FrequencyRange: 800MHz to 2200MHz
• Gain: 2.15-3dBi
• VSWR: 2.0:1
• Applications: GSM/CDMA/3G/LTE ANTENNA
• Height: 108mm
• OperatingTemperature: -40°C~+80°C
• Rohs: ROHS
• Packaging: BAG

---

You can click for product datasheet.
