L-KLS1-3GR100-17048 ANTENNA GSM SMA 50R 50MM 90C

L-KLS1-3GR100-17048 ANTENNA GSM SMA 50R 50MM 90C Description

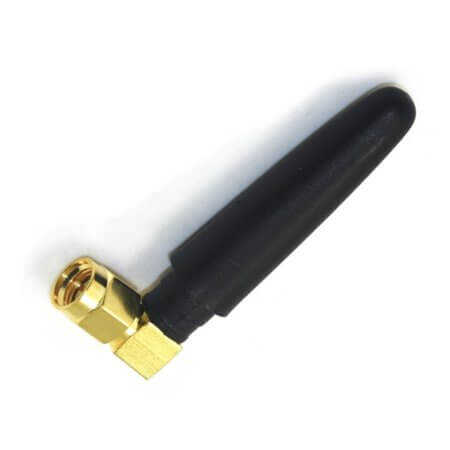

L-KLS1-3GR100-17048 ANTENNA GSM SMA 50R 50MM 90C The product L-KLS1-3GR100-17048 (ANTENNA GSM SMA 50R 50MM 90C) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a RUBBER DUCK type design with an impedance of 50 Ohm, it supports a wide frequency range of 824MHz to 960MHz, 1710MHz to 2170MHz. The antenna offers a gain of 2dBi and a VSWR of 1.5, ensuring efficient performance. Suitable for N/A, it has a compact height of 50mm and operates within a temperature range of -30°C~+70°C. Compliant with ROHS standards, it is packaged in BULK format, making it ideal for modern communication systems.

L-KLS1-3GR100-17048 ANTENNA GSM SMA 50R 50MM 90C Technical Specifications

• Manufacturer: KLS ELECTRONIC
• Gender: SMA MALE
• AntennaType: RUBBER DUCK
• Impedance: 50 Ohm
• FrequencyRange: 824MHz to 960MHz, 1710MHz to 2170MHz
• Gain: 2dBi
• VSWR: 1.5
• Applications:
• Height: 50mm
• OperatingTemperature: -30°C~+70°C
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
