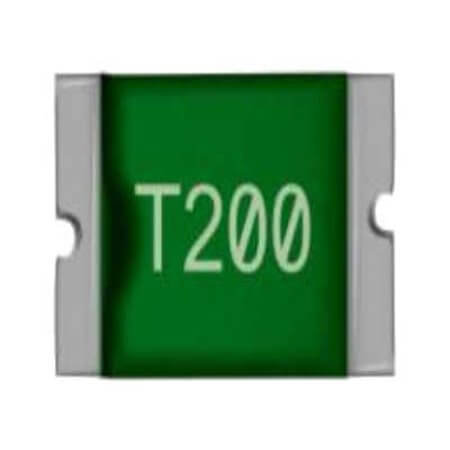

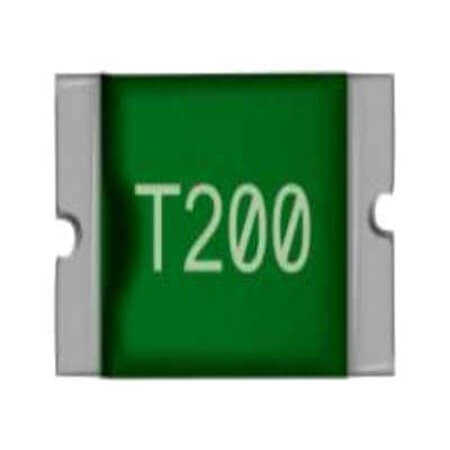

KMC5S200RY16 THERMISTOR PTC RESETTABLE FUSE 1812 2A 16V

KMC5S200RY16 THERMISTOR PTC RESETTABLE FUSE 1812 2A 16V Description

KMC5S200RY16 THERMISTOR PTC RESETTABLE FUSE 1812 2A 16V The KMC5S200RY16, manufactured by THINKING, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 1812 2a 16v. It offers reliable overcurrent protection with a maximum voltage rating of 16V. The fuse features a trip time of 2s, ensuring fast response to overcurrent events. Its compact dimensions of 4.50mm x 3.20mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the KMC5S200RY16 is an excellent choice for professionals seeking reliable PTC fuse solutions.

KMC5S200RY16 THERMISTOR PTC RESETTABLE FUSE 1812 2A 16V Technical Specifications

• Manufacturer: THINKING
• MountingType: SMT
• Package/Case: 1812 (4532 Metric)
• Pitch:
• Resistance(Min): 20m Ohms
• Resistance(Max): 60m Ohms
• Current-Hold: 2A
• Current-Trip: 3.5A
• Current(Max): 100A
• Voltage(Max): 16V
• Time-Trip: 2s
• Applications:
• Diameter:
• Length: 4.50mm
• Width: 3.20mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
