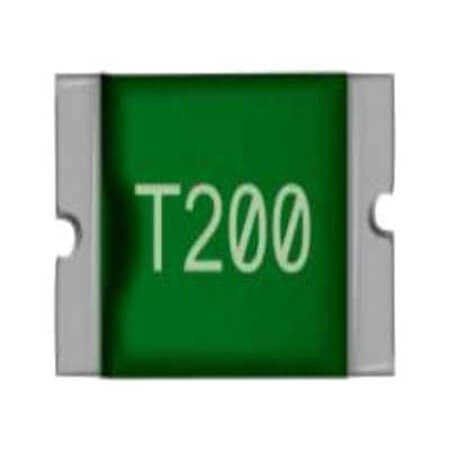

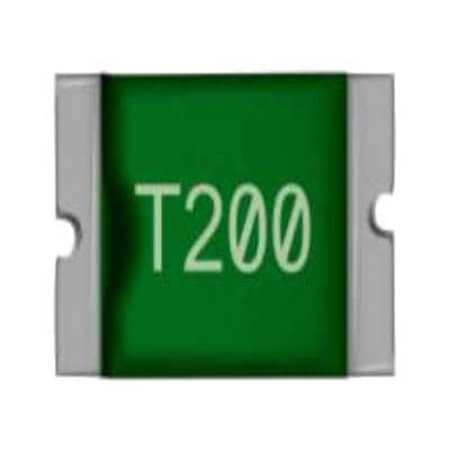

KMC3S016RY THERMISTOR PTC RESETTABLE FUSE 1206 160mA 30V

KMC3S016RY THERMISTOR PTC RESETTABLE FUSE 1206 160mA 30V Description

KMC3S016RY THERMISTOR PTC RESETTABLE FUSE 1206 160mA 30V The KMC3S016RY, manufactured by THINKING, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 1206 160ma 30v. It offers reliable overcurrent protection with a maximum voltage rating of 30V. The fuse features a trip time of 300ms, ensuring fast response to overcurrent events. Its compact dimensions of 3.20mm x 1.60mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the KMC3S016RY is an excellent choice for professionals seeking reliable PTC fuse solutions.

KMC3S016RY THERMISTOR PTC RESETTABLE FUSE 1206 160mA 30V Technical Specifications

• Manufacturer: THINKING
• MountingType: SMT
• Package/Case: 1206 (3216 Metric)
• Pitch:
• Resistance(Min): 1.1 Ohms
• Resistance(Max): 4.5 Ohms
• Current-Hold: 160mA
• Current-Trip: 370mA
• Current(Max): 100A
• Voltage(Max): 30V
• Time-Trip: 300ms
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 1.60mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
