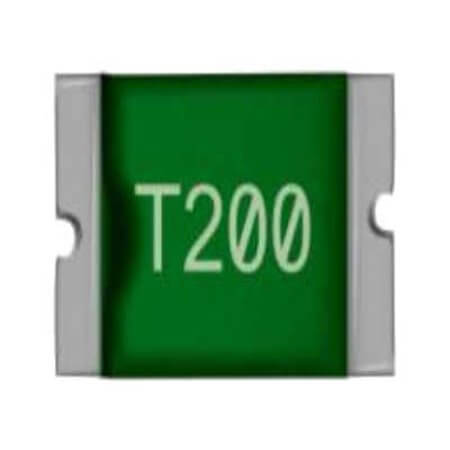

KMC1S020RY THERMISTOR PTC RESETTABLE FUSE 0603 200mA 9V

KMC1S020RY THERMISTOR PTC RESETTABLE FUSE 0603 200mA 9V Description

KMC1S020RY THERMISTOR PTC RESETTABLE FUSE 0603 200mA 9V The KMC1S020RY, manufactured by THINKING, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 0603 200ma 9v. It offers reliable overcurrent protection with a maximum voltage rating of 9V. The fuse features a trip time of 600ms, ensuring fast response to overcurrent events. Its compact dimensions of 1.60mm x 0.80mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the KMC1S020RY is an excellent choice for professionals seeking reliable PTC fuse solutions.

KMC1S020RY THERMISTOR PTC RESETTABLE FUSE 0603 200mA 9V Technical Specifications

• Manufacturer: THINKING
• MountingType: SMT
• Package/Case: 0603 (1608 Metric)
• Pitch:
• Resistance(Min): 550m Ohms
• Resistance(Max): 3.5 Ohms
• Current-Hold: 200mA
• Current-Trip: 500mA
• Current(Max): 40A
• Voltage(Max): 9V
• Time-Trip: 600ms
• Applications:
• Diameter:
• Length: 1.60mm
• Width: 0.80mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
