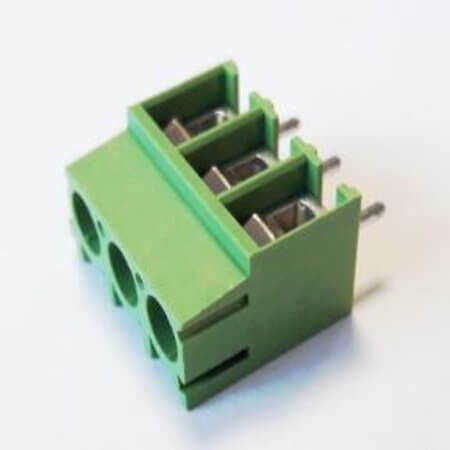

KF306V-5.0-03P-1G TERM.BLK.5.0MM 3P PCB TYPE 0 BOY GREEN KAIFENG

KF306V-5.0-03P-1G TERM.BLK.5.0MM 3P PCB TYPE 0 BOY GREEN KAIFENG Description

KF306V-5.0-03P-1G TERM.BLK.5.0MM 3P PCB TYPE 0 BOY GREEN KAIFENG KF306V-5.0-03P-1G is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 22-14 AWG (2.5 mm²). Constructed using PA66+UL94V-0 housing, Phosphor Bronze+Ni Plated Or Stainless Steel clamps, and Brass+Tin Plated pins for durability. Manufactured by KAIFENG with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

KF306V-5.0-03P-1G TERM.BLK.5.0MM 3P PCB TYPE 0 BOY GREEN KAIFENG Technical Specifications

• Manufacturer: KAIFENG
• Series: KF306V
• Gender: Male
• WireTermination: Screw
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 5.00mm
• MountingType: THT R/A
• WireEntry: 90°
• ProfileHeight: 13.70mm
• Current: 12.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 22-14 AWG
• WireGauge(mm²): 2.5 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Phosphor Bronze+Ni Plated Or Stainless Steel
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
