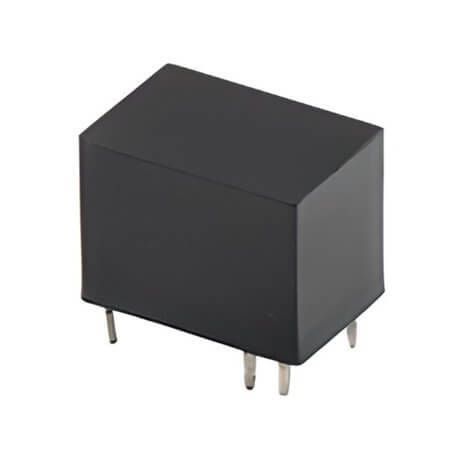

JRC-21F-12VDC RELAY 1A 12VDC 1PNC TELECOM DRAGON

JRC-21F-12VDC RELAY 1A 12VDC 1PNC TELECOM DRAGON Description

JRC-21F-12VDC RELAY 1A 12VDC 1PNC TELECOM DRAGON JRC-21F-12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 400 Ohms. Features a coil power of 360mW and operates within a temperature range of nan.Compact design with dimensions: length 15.50mm, width 11.00mm, and height 11.50mm.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as BULK for convenience.

JRC-21F-12VDC RELAY 1A 12VDC 1PNC TELECOM DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Power
• Series: JRC-21F
• MountingType: THT
• ContactForm:
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max): 2A
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 400 Ohms
• CoilPower: 360mW
• OperatingTemperature:
• NumberofPins: 6 Pin
• Length: 15.50mm
• Width: 11.00mm
• Height: 11.50mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
