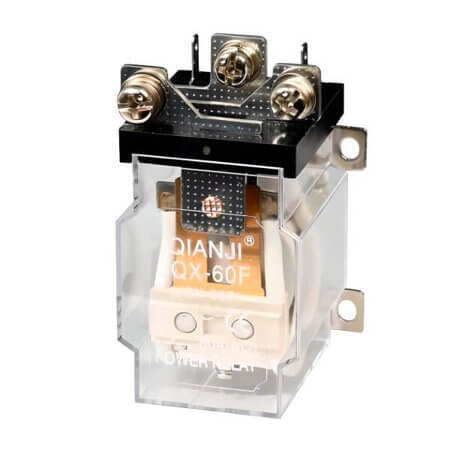

JQX-60F-1Z-220VAC RELAY 60A 220V AC 1PNC SCREW MOUNTING QIANJI

JQX-60F-1Z-220VAC RELAY 60A 220V AC 1PNC SCREW MOUNTING QIANJI Description

JQX-60F-1Z-220VAC RELAY 60A 220V AC 1PNC SCREW MOUNTING QIANJI JQX-60F-1Z-220VAC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 19.60K Ohms. Features a coil power of 2.50VA and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 45.80mm, width 45.00mm, and height 64.00mm.Manufactured by QIANJI and compliant with ROHS standards. Packaged as TUBE for convenience.

JQX-60F-1Z-220VAC RELAY 60A 220V AC 1PNC SCREW MOUNTING QIANJI Technical Specifications

• Manufacturer: QIANJI
• RelayType: Relay Power
• Series: JQX-60F
• MountingType: Screw Mount
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 60A
• ContactCurrent(Max): 80A
• CoilVoltage: 220VAC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 19.60K Ohms
• CoilPower: 2.50VA
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin
• Length: 45.80mm
• Width: 45.00mm
• Height: 64.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
