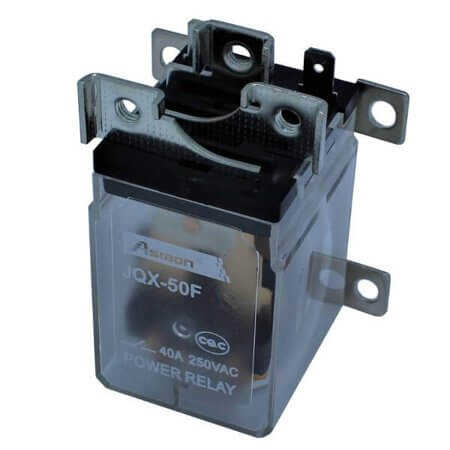

JQX-50F-DC12V RELAY 40A 12VDC 1PNC SCREW MOUNTING DRAGON

JQX-50F-DC12V RELAY 40A 12VDC 1PNC SCREW MOUNTING DRAGON Description

JQX-50F-DC12V RELAY 40A 12VDC 1PNC SCREW MOUNTING DRAGON JQX-50F-DC12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 57.60 Ohms. Features a coil power of 2.50W and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 45.80mm, width 38.50mm, and height 48.00mm.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as TRAY for convenience.

JQX-50F-DC12V RELAY 40A 12VDC 1PNC SCREW MOUNTING DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Power
• Series: JQX-50F
• MountingType: Screw Mount
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max): 40A
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 57.60 Ohms
• CoilPower: 2.50W
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 45.80mm
• Width: 38.50mm
• Height: 48.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
