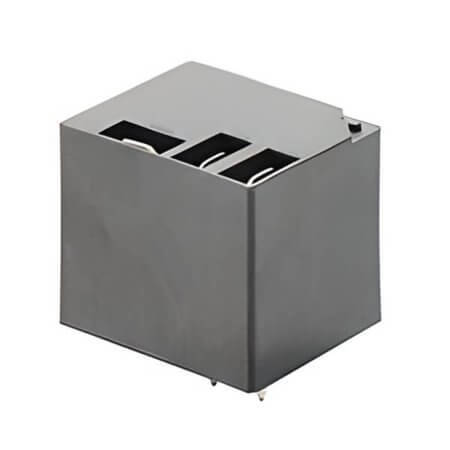

JQX-16F-T91-4138 RELAY 40A COIL:DC12V DRAGON

JQX-16F-T91-4138 RELAY 40A COIL:DC12V DRAGON Description

JQX-16F-T91-4138 RELAY 40A COIL:DC12V DRAGON JQX-16F-T91-4138 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 240VAC/28VDC and coil resistance of 160 Ohms. Features a coil power of 900mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 69.00mm, width 68.20mm, and height 62.00mm.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as TUBE for convenience.

JQX-16F-T91-4138 RELAY 40A COIL:DC12V DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Power
• Series: JQX-16F
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 240VAC/28VDC
• CoilResistance: 160 Ohms
• CoilPower: 900mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin
• Length: 69.00mm
• Width: 68.20mm
• Height: 62.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
